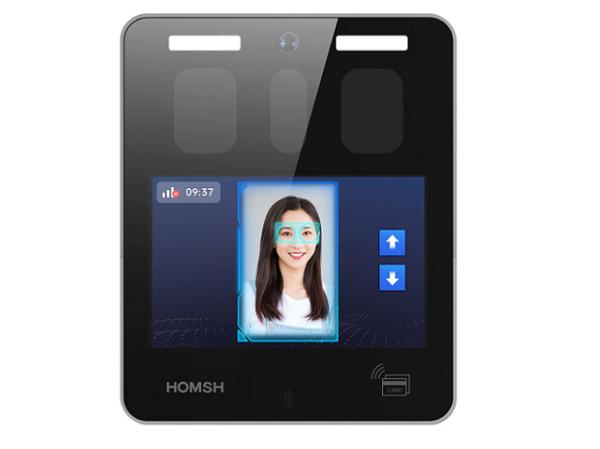

Iris Access Control Device: Identity Recognition, Hard-Core Chip, False Eye Prevention
Description
Iris face access control machine is a support iris, face, password, IC card (optional) and other authentication access control equipment, support lens automatic pitch, can adapt to different height people. The device adopts 7-inch touch display screen, all-metal shell structure, intelligent operation voice prompt and intuitive user interface, which can be widely used in access control security control and identity recognition in smart residential areas, intelligent buildings, public security, finance, medical care, education and other fields.
Features
1. Equipped with iris recognition technology autonomous iris recognition algorithm Phaselris™ and the world's first hardcore dedicated iris recognition intelligent chip Qianxin™;
2. Algorithm performance in line with the national standard "Information Security technology iris recognition system function to core algorithm performance" (GB/T20979-2019);
3. The device uses a hard-core chip for front-end comparison processing to achieve offline recognition comparison. Biometric image preprocessing, image coding and image coding and encryption are all completed on the hard-core dedicated biometric chip to ensure the data security of iris information before transmission;
4. With live detection (completed on the core dedicated chip for iris recognition), completely eliminate the registration and recognition of false eyes
5. Support iris, face, password, CPU card (optional) and other ways to open the door;
6. The lens supports automatic Angle adjustment to adapt to people of different heights;
7. Use 7-inch capacitive touch display, visual graphical interface operation and intelligent voice prompt;
8. Using human eye tracking iris natural color display technology, perfect interactive experience
Specification
| Product model | D30 |
| Product size (L*W*H) | 222*182*45mm |
| Display screen | 7 inch capacitive touch screen, resolution 1280*800pixel |
| Camera | Iris :2MP, face 2MP |
| Working distance | Iris :35~ 50cm, face :35~100cm |
| Identification mode | Iris, face, password, IC card (optional) |
| Adaptive height range | 1.4~1.9m |
| User capacity | Iris: 10,000 people, face: 10,000 people, IC card: 10,000 |
| Average recognition time | Iris≤1.5s, face ≤1.5s |
| False Acceptance Rate ( FAR) | Iris :10 -7, face :10-4 |
| False Rejection Rate(FRR) | Iris :10 -3, face :10-3 |
| Infrared safety standard | Compliant with American standard ANSI RP-271-96 compliant with EU standard IEC/EN62471 |
| Core algorithm performance | "Information Security technology iris recognition system Technical requirements" GB/T20979-2019 |
| Iris image quality | Comply with the national standard GB/T33767.6-2018 iris image data |
| Communication mode | TCP/IP |
| Other interface | DC/RJ45/RS-485/ Wiegand output/Door lock/door switch /USB2.0 |
| Operating ambient temperature | -10C~55C |
| Working ambient humidity | 0 to 93%RH, non-condensing |
| Working environment light intensity | 0~6000Lux(non-direct sunlight) |
| Supply voltage | DC 12V@3A |
| Mode of use | Wall mounting |
Application
D30 can be widely used in smart residential areas, intelligent buildings, public security, finance, medical care, education, airport and other fields of access control security control and identity recognition.
